这几天在折腾学习PYNQ-Z2,然后看到官方文档中介绍了如何安装板卡文件。[1]

Vivado board files contain the configuration for a board that is required when creating a new project in Vivado.

Installing these files in Vivado, allows the board to be selected when creating a new project. This will configure the Zynq PS settings.

To install the board files, extract, and copy the board files folder to:

<Xilinx installation directory>\Vivado\<version>\data\boards

If Vivado is open, it must be restart to load in the new project files before a new project can be created.

然而,我将解压的文件夹直接放入boards之后,在Vivado并不能选取pynq-z2,然后经过一番搜索找到一篇教程——Vivado Version 2015.1 and Later Board File Installation (Legacy)[2]。这个教程介绍的较为完整,意思是新的板卡文件需要放入下一层目录,即board_files中去。

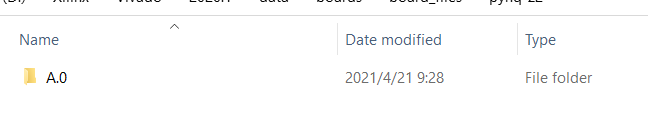

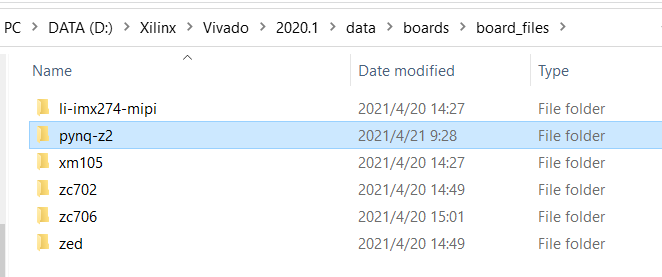

事实上,pynq-z2板卡文件应该放置于boards\board_files中,即最后解压出来的文件夹pynq-z2放置在里面,这样在Vivado中创建项目时,选择板卡,就能够找到pynq-z2了。
